From £660.00 (+ VAT)
Eurotherm 3508 Dual Loop Controller/Programmer
Improve process efficiency, product quality and minimise waste
The latest range of advanced process controllers from EurothermTM provide precision control of temperature and a host of other process variables together with an abundance of advanced options making it the most adaptable product in its class.
The emphasis is on flexibility yet the 3500 controllers still maintain ease of use. A simple ‘Quick Start’ process is used to configure all the basic functions essential to controlling your process. This includes input sensor type, measurement range, control options and alarms making ‘Out the Box’ operation truly achievable. More advanced features are configured using a PC based graphical configuration tool enabling users to pick function blocks from a library then connect them together using soft wiring.

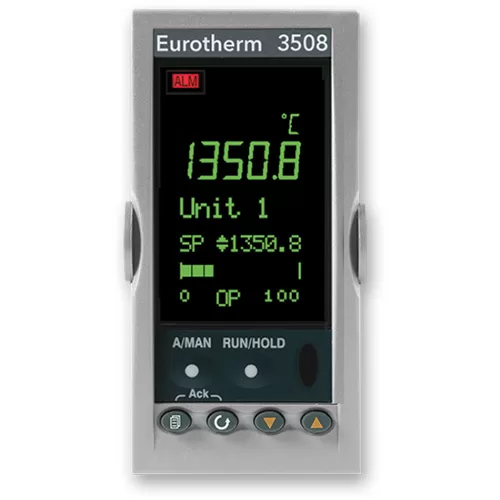

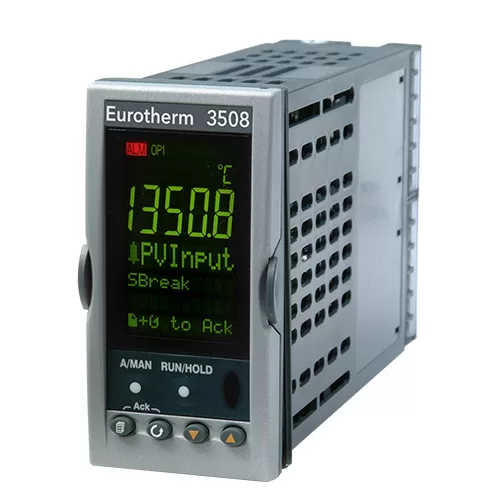

The large 5-digit display provides a clear and unambiguous indication of the process value. A four-line message centre provides custom or standard views of important information to the user while vertical and horizontal bargraphs provide at a glance visual indication of the process. Configuration Lock enables a user to protect their intellectual property by preventing unauthorized cloning of the configuration.
- 50 Programs
- Precision PV input
- Carbon potential
- Maths/logic/timers
- Custom user interface • Recipes
- Digital communications
- Ethernet : DUAL RJ45 port
- Modbus TCP Server and Client – Modbus RTU Server and Client – DeviceNet® network
- Configuration Lock
- Multi-language support (English, French, German, Spanish and Italian)
Product download
